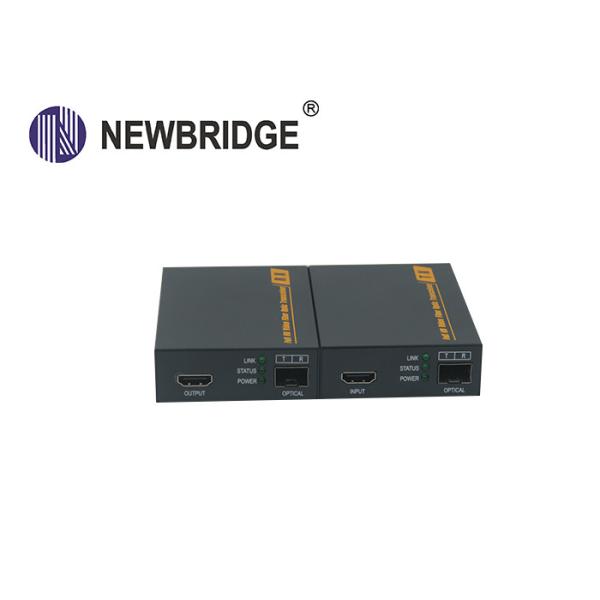

Full HD fiber optic extender with SFP model and data RS232

1.Description

The HDMI Fiber optic extender provides extension of HDMI and 3D signals

long distances over one fiber optic cable, it supports high resolution up to

4k*2k, EDID copy/pass-thru function. The extender can use for a wide range of

applications requiring long distance transmission of high resolution with high

quality by its good stability and powerful security.

2. Features

• ransmit HDMI video signals up to 2km-10km over a pair fiber optic cable;
• Support video resolution up to 4KX2KO30HZ, 3D: 1080P ;
• Support copy EDID copy/pass-thru, can match many kind display device;
• Support RS232 undirectional transmission;
• Compliance with HMDI 1.4B standard;
• High compatibility, can auto-match source and display device;
• Built-in automatic adjustment system, make the image smooth, clear and stable;
• Built-in ESD protection system;
• Simple to install, plug and play;

3. Specification

4.Panel

5. Packing list

• HDMI optical fiber transmitter.........................1pcs
• HDMI optical fiber receiver.............................1pcs
• Fiber optic module..........................................2pcs
• Power adapter.................................................2pcs
• User manual....................................................1pcs

6. Installation

• Connect the provided Dc power supplies to the power socket of the transmitter and the receiver
• Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source
• Adopt LC connector of fiber cable to connect from Transmitter STF fiber port
• Connect the transmitter optical port to the receiver optical port using one fiber optic cable

7.Diagram
